DESBOERN NCGF-U-I Series Strain Wave Gearbox

34 Views

Model:11\14
Ratio:50 - 100
Backlash: ≤30arcsec
Nominal Output Torque: 3.5-7.8 Nm

Get A Free Quote

Category :

NCGF Series

Description

Ordering Instructions

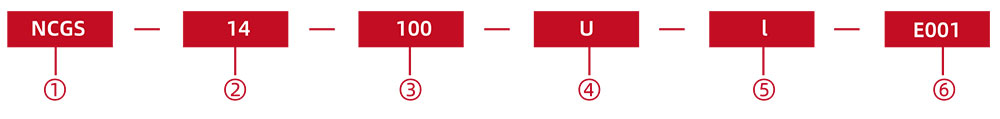

① Model Name	② Specification Code	③ Reduction Ratio						④ Structure Code	⑤ Generator Type	⑥ Custom Specification
NLGS NCGS NCGD NLGD NLGST	11		50		100			C U	I II III IV V	E001
	14	30	50	80	100
	17	30	50	80	100	120
	20		50	80	100	120	160
	25		50	80	100	120	160
	32		50	80	100	120	160
	40		50	80	100	120	160

(1)Production
Location:N is the factory codeFlexspline Shape:Flexsplines are divided
into L top hat type and C cup typeFlexspline Length:Flexsplines are
divided into S standard type and D short tube typeHigh Torque Design:G
for high torque design,blank for standard typeSpecial Structure:T for
three-wave generator structure Gearbox

(2)Specification Codes of Strain Wave Gearboxes:Such as 14,17,20,25,32,40,etc.

(3)Reduction Ratios of Strain Wave Gearboxes:Such as 30,50,80,100,120,160,etc.

(4)Structure Code

(5)Wave Generator Type:C for component type,U for combined type

(6)E001 is the project code for customized Strain Wave Gearboxes

Key Features

High
precision:multiple teeth mesh at the same time in two 180 degree
symmetripositions,so the gear pitch error and cumulative pitch error
have a relatively averaimpact on the rotation accuracy,and can obtain
very high position accuracy and rottion accuracy.

Large
transmission ratio:the transmission ratio of single-stage strain wave
getransmission can reach i=30-500,and the structure is simple.Three
basic parts ontsame axis can achieve high speed ratio.

High
bearing capacity:in the fast wave transmission,the meshing of teeth and
teis surface contact,plus the number of meshing teeth at the same time
is relatively larso the unit area load is small,and the bearing capacity
is higher than other transmsion forms.

Small size and light
weight:compared with the ordinary gear device,the volume aweight can be
greatly reduced to achieve miniaturization and lightweight.

High transmission efficiency and long service life.

Smooth transmission,no impact,and low noise.

Gearbox Technical Specifications

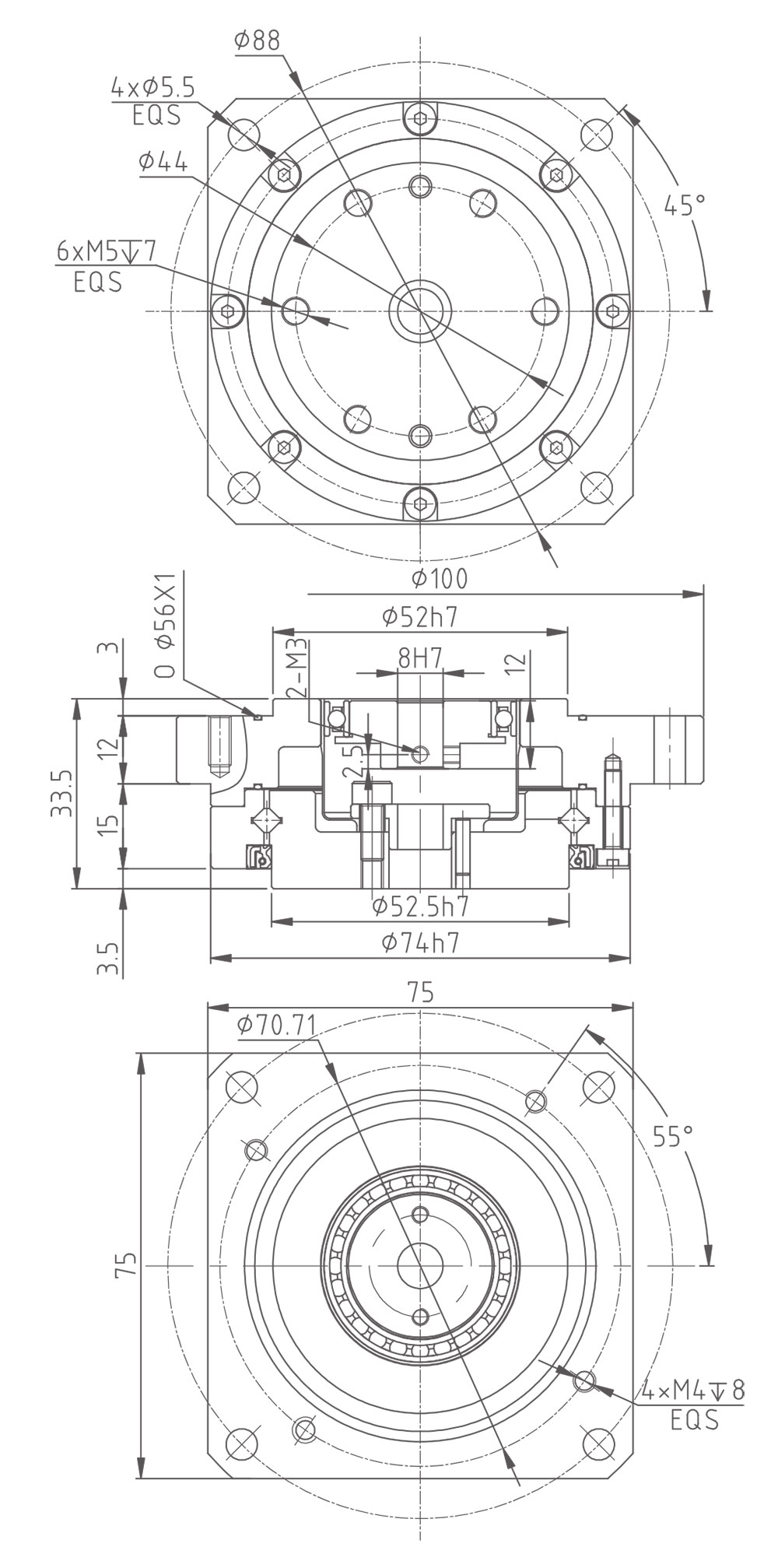

NCGF-11-00-U-I Type Strain Wave Gearbox

ModelItem	Gear Ratio	Rated Speed at 2000 r /min Input	Max. Allowable Torque during Start/Stop	Max. Allowable Average Load Torque	Max. Momentary Allowable Torque	Max. Allowable Input Speed	Allowable Average Input Speed	Starting Torque	Backlash	Service Life	Weight
ModelItem	Gear Ratio	Nm	Nm	Nm	Nm	rpm	rpm	cNm	arcsec	Hour	Kg
NCGF–11	50	3.5	8.3	5.5	17	8500	3500	2	ぜひ30	10000	0.17
NCGF–11	100	5	11	8.9	25	8500	3500	1.5	ぜひ30	10000	0.17

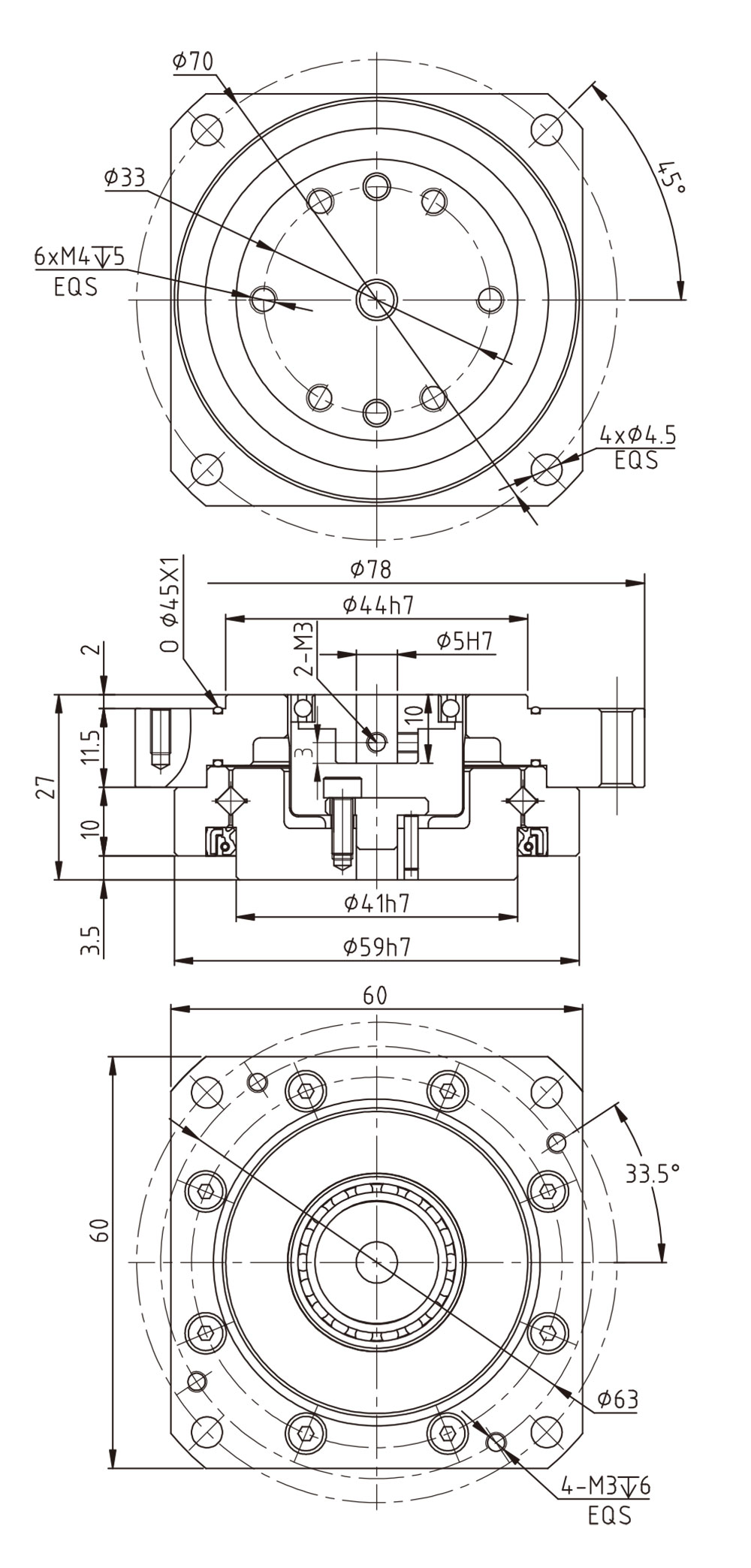

NCGF-14-00-U-I Type Strain Wave Gearbox

ModelItem	Gear Ratio	Rated Speed at 2000 r/min Input	Max. Allowable Torque during Start/Stop	Max. Allowable Average Load Torque	Max. Momentary Allowable Torque	Max. Allowable Input Speed	Allowable Average Input Speed	Starting Torque	Backlash	Service Life	Weight
ModelItem	Gear Ratio	Nm	Nm	Nm	Nm	rpm	rpm	cNm	arcsec	Hour	Kg
NCGF–14	50	5.4	18	6.9	35	8500	3500	4.1	ぜひ20	10000	0.39
	80	7.8	23	11	47			2.8	ぜひ20	15000
	100	7.8	28	11	54			2.5	ぜひ20	15000
